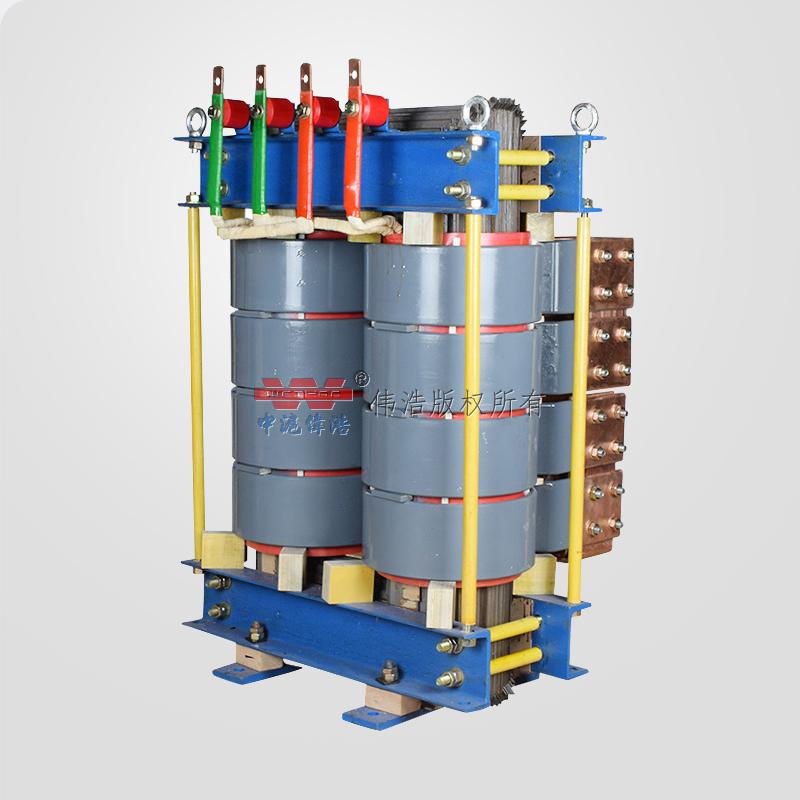

Low voltage electric furnace transformers Heating transformers
- Category：Low voltage high current SDDG transformer
- Overview of special transformer for silicon molybdenum rod, low voltage electric furnace transformer, heating transformer Weihao low voltage high current transformer is a special form of isolation transformer, divided into single-phase (DDG) and
- Hotline：
Overview of special transformer for silicon molybdenum rod, low voltage electric furnace transformer, heating transformer
Weihao low voltage high current transformer is a special form of isolation transformer, divided into single-phase (DDG) and three-phase (SDG) series. The characteristic of low voltage and high current is that the primary voltage is high, the secondary voltage is very low and the current is very large. The high-current dry-type transformer is a special transformer specially designed and manufactured according to the electrical equipment testing of various switches, current transformers and other electrical equipment in electric power departments and industrial and mining enterprises. This series of products are mainly used in electric furnace heating, silicon molybdenum rod heating, and welding equipment. If this series of products are used to adjust the load current of the product under test, this product needs to be used in conjunction with a voltage regulator to achieve smooth and stepless adjustment. This series of products is suitable for power supplies with a rated frequency of 50HZ. Some products are equipped with taps at the beginning, which can only adjust the voltage after the power supply is cut off. The insulation heat resistance class of this series of transformers is Class F. The core of this product is made of cold-rolled oriented high-quality silicon steel sheets. The coil structure adopts cylindrical, elliptical and rectangular cylindrical.
The volume and weight of dry-type low-voltage high-current transformers adopt a split and integrated structure, which has the characteristics of stepless adjustment of output current, balanced current rise, large load change range, reliable work, simple operation, and safety. It is an ideal equipment for industrial and mining enterprises to carry out upflow or temperature rise tests. The products are manufactured according to the national standard GB 19212.5 or the Ministry of Machinery standard JB/T 8750-1998.
Low voltage electric furnace transformer heating transformer silicon molybdenum rod special transformer overview technical parameters
|
Yung amount |
50VA-3500KVA |
Voltage level |
AC3500V and below |
|
Input voltage |
Allow the rated voltage to fluctuate by ±10% |
Insulation resistance |
DC 500V≥100MΩ |
|
The output voltage |
Rated voltage within the load range ±2-3℅ |
Insulation class |
Class F |
|
Frequency rate |
50Hz/60Hz |
Ambient temperature |
--15°C--+45°C |
|
Dielectric strength |
3500V/10mA/60s |
Relative humidity |
＜95℅ |
|
Load performance |
When continuous 100℅ full load, it can withstand 3- times instantaneous current |
Temperature rise |
＜100K |
|
Waveform distortion |
No additional waveform distortion |
Noise sound |
＜65db |
Low voltage electric furnace transformer heating transformer silicon molybdenum rod special transformer product size
|
Specification model |
Rated capacity ( KVA ) |
Rated input line / phase voltage ( V) |
Rated output line / phase voltage ( V) |
Transformer reference size width X depth X height ( mm ) |
Reference weight ( KG ) |
|
|
Three phase |
SGB-3 |
3 |
AC3500V |
AC42V/36V/ 32V/30V
/12V |
325×120×260 |
32 |
|
SGB-5 |
5 |
325×145×260 |
40 |
|||
|
SGB-10 |
10 |
340×200×330 |
60 |
|||
|
SGB-15 |
15 |
420×240×390 |
90 |
|||
|
SGB-20 |
20 |
420×250×410 |
110 |
|||
|
SGB-30 |
30 |
420×350×410 |
130 |
|||
|
SGB-40 |
40 |
480×300×460 |
170 |
|||
|
SGB-50 |
50 |
650×400×540 |
210 |
|||
|
SGB-60 |
60 |
650×420×540 |
230 |
|||
|
SGB-80 |
80 |
650×380×600 |
320 |
|||
|
SGB-100 |
100 |
650×400×600 |
380 |
|||
|
SGB-120 |
120 |
800×450×600 |
420 |
|||
|
SGB-150 |
150 |
850×380×780 |
500 |
|||
|
SGB-180 |
180 |
850×380×780 |
550 |
|||
|
SGB-200 |
200 |
850×430×780 |
620 |
|||
|
SGB-225 |
225 |
855×435×780 |
680 |
|||
|
SGB-250 |
250 |
860×440×780 |
730 |
|||
|
SGB-300 |
300 |
870×445×780 |
820 |
|||
|
SGB-400 |
400 |
890×450×780 |
950 |
|||
|
SGB-500 |
500 |
1050×600×1200 |
1300 |
|||
|
SGB-600 |
600 |
1100×700×1200 |
1500 |
|||
|
SGB-800 |
800 |
1120×750×1200 |
1800 |
|||
|
SGB-1000 |
1000 |
1150×800×1200 |
2100 |
|||
|
Single phase |
DGB-1 |
1 |
Phase voltage |
Phase voltage 30V32V 36V
12V |
165×140×140 |
12 |
|
DGB-2 |
2 |
200×130×210 |
16 |
|||
|
DGB-3 |
3 |
200×140×210 |
18 |
|||
|
DGB-5 |
5 |
210×170×280 |
28 |
|||
|
DGB-8 |
8 |
210×190×300 |
36 |
|||
|
DGB-10 |
10 |
210×220×300 |
43 |
|||
|
DGB-12 |
12 |
240×170×380 |
47 |
|||
|
DGB-15 |
15 |
250×180×380 |
55 |
|||
|
DGB-20 |
20 |
250×220×380 |
77 |
|||
|
DGB-25 |
25 |
250×230×440 |
100 |
|||
|
DGB-30 |
30 |
250×230×550 |
120 |
|||
|
DGB-40 |
40 |
260×250×550 |
140 |
|||
|
DGB-50 |
50 |
330×240×550 |
170 |
|||
|
DGB-60 |
60 |
330×280×550 |
210 |
|||
|
DGB-80 |
80 |
330×320×550 |
260 |
|||
|
DGB-100 |
100 |
340×320×550 |
300 |
|||
|
DGB-120 |
120 |
440×400×600 |
360 |
|||
|
DGB-150 |
150 |
450×420×600 |
410 |
|||
|
DGB-180 |
180 |
560×440×780 |
470 |
|||
|
DGB-200 |
200 |
580×445×780 |
520 |
|||
Description of special transformer for low-voltage electric furnace transformer heating transformer silicon molybdenum rod
1. Please indicate the model specification, rated input voltage, rated output voltage, connection of primary and secondary windings, and whether it is equipped with a chassis when ordering;
2. The cooling method of the chassis and whether there are special requirements;
3. The external dimensions and weight of the transformer are for reference only, and the actual product shall prevail.
