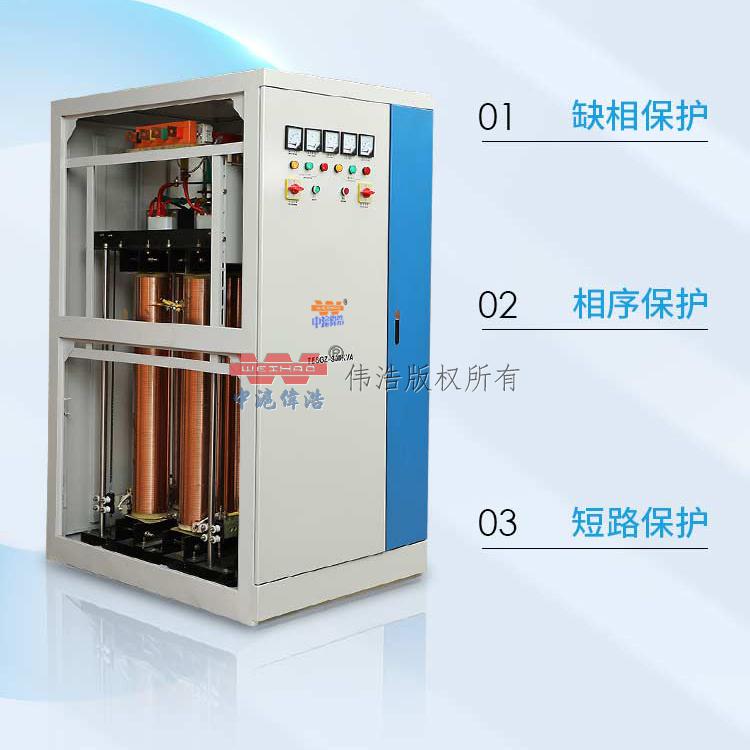

Three Phase TESGZ Column Regulator

Three Phase TESGZ Column Regulator Three Phase TESGZ Column Regulator

Three Phase TESGZ Column Regulator

  • Category：TESGZ column regulator
  • Column Type Voltage Regulator--Product Overview (TEDGZ, TESGZ series single and three-phase high-power electric voltage regulators) Weihao TEDGZ, TESGZ series single and three-phase high-power electric column-type voltage regulators are new product
  • Hotline：
Product Description

 Column Type Voltage Regulator--Product Overview (TEDGZ, TESGZ series single and three-phase high-power electric voltage regulators)

 Weihao TEDGZ, TESGZ series single and three-phase high-power electric column-type voltage regulators are new products of high-power column-type voltage regulators developed, designed and produced by our company in combination with market demand to meet the needs of customers. The column type electric voltage regulator has no distortion of the output voltage waveform (the output voltage waveform distortion rate increment is less than 1%). The output voltage can be adjusted from zero voltage, strong instantaneous overload capability, no-load current, low no-load loss, high efficiency, low noise, and long life. It is suitable for various inductive, capacitive and resistive loads.

 Column type voltage regulator--technical parameters (TEDGZ, TESGZ series single, three-phase high-power electric voltage regulator)

 ●Input voltage: single-phase 220V, three-phase 380V (three-phase four-wire) (customizable voltage)


 ●Output code grave: single-phase 0-250V three-phase 0-430V three-phase 0-500V


●Frequency: 50Hz


●Efficiency: >95%


●Strain time: 0.2-0.5S


●Waveform distortion: no additional distortion


 ●Electrical strength: no breakdown and flashover phenomenon for 1 minute with power frequency sine wave voltage of 2000V


●Insulation resistance: ≥200MΩ

 Column type voltage regulator--model specifications (TEDGZ, TESGZ series single and three-phase high-power electric voltage regulators)


Phase

Model Specifications (kVA)

Rated output current (A)

Dimensions ( D × W × H ) (mm)

Phase

Model Specifications (kVA)

Rated output current (A)

Dimensions ( D × W × H ) (mm)

Simplex

TEDGZ-16

64

500×600×1500

three phase

TESGZ-25

33

650×570×1650

TEDGZ-20

80

500×600×1500

TESGZ-32

43

650×570×1650

TEDGZ-25

100

500×600×1500

TESGZ-40

53

700×630×1700

TEDGZ-32

128

600×630×1500

TESGZ-50

67

700×630×1700

TEDGZ-40

160

600×630×1500

TESGZ-63

84

700×630×1700

TEDGZ-50

200

600×630×1500

TESGZ-80

107

700×1200×1700

TEDGZ-63

252

700×1200×1700

TESGZ-100

134

700×1200×1700

TEDGZ-80

320

700×1200×1700

TESGZ-125

168

700×1200×1700

TEDGZ-100

400

700×1200×1700

TESGZ-160

215

1200×1500×1700

TEDGZ-125

500

700×1200×1700

TESGZ-200

269

1200×1500×1700
