Principle and use

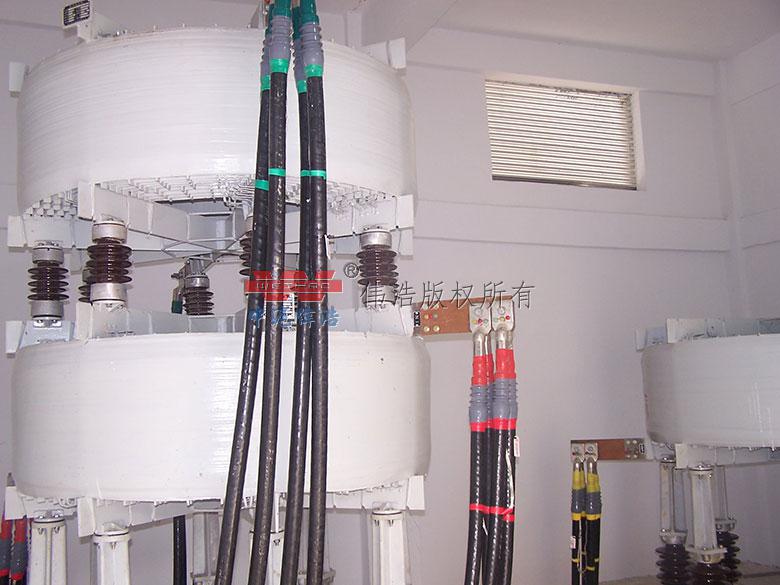

 Our company specializes in the production of various specifications of air-core reactor series products. The product voltage range is from 0-35KV and the capacity is from 0-3500KVAR. It is often used in reactive power compensation, harmonic filtering, current limiting and other occasions. It adopts multi-layer winding and parallel cylindrical structure. It is separated from the encapsulation by a guide strip to form a ventilation air channel, which has good heat dissipation. At the same time, a small cross-section round wire is used for multiple equal winding, and the eddy current loss and magnetic leakage loss are small. In terms of insulation, we use poly The grease film is multi-layered and semi-laminated, with high insulating strength. The winding is tightly wrapped with glass fiber impregnated with epoxy insulating adhesive, and cured at high temperature to form a steel body, which has high mechanical strength and can withstand the impact of short-circuit current. Without damage, the surface of the coil has an anti-ozone UV protection layer, which is anti-aging and resistant to various harsh climates. Weihao air-core reactors are mainly divided into series reactors; filter reactors; current limiting reactors; shunt reactors.

Executive standard

GB10229-88 "Reactor"

 DL462-92 "Technical Conditions for Ordering Series Reactors for High Voltage Capacitors"

JB5346-1998 "Series Reactor"

IEC289-88 "Reactor"

 JISC4801-1997 "Series Reactors for High Voltage and Special High Voltage Shunt Capacitors"

Use environmental conditions

1. Use location: indoor or outdoor

2. Ambient temperature: -40℃ to +45℃

3. Operating altitude ≤1000m

 4. The installation site should be free from harmful gas, steam and conductive or explosive dust

5. Relative temperature: ≤90%

6. Maximum wind speed: 35m/s

7. Earthquake intensity: ≤8 degrees

8. Anti-fouling ability: ≥25mm/kv

 Note: If there are special requirements for the use of environmental conditions, please put forward in the contract.
