Medical Insulation Monitor Product Overview

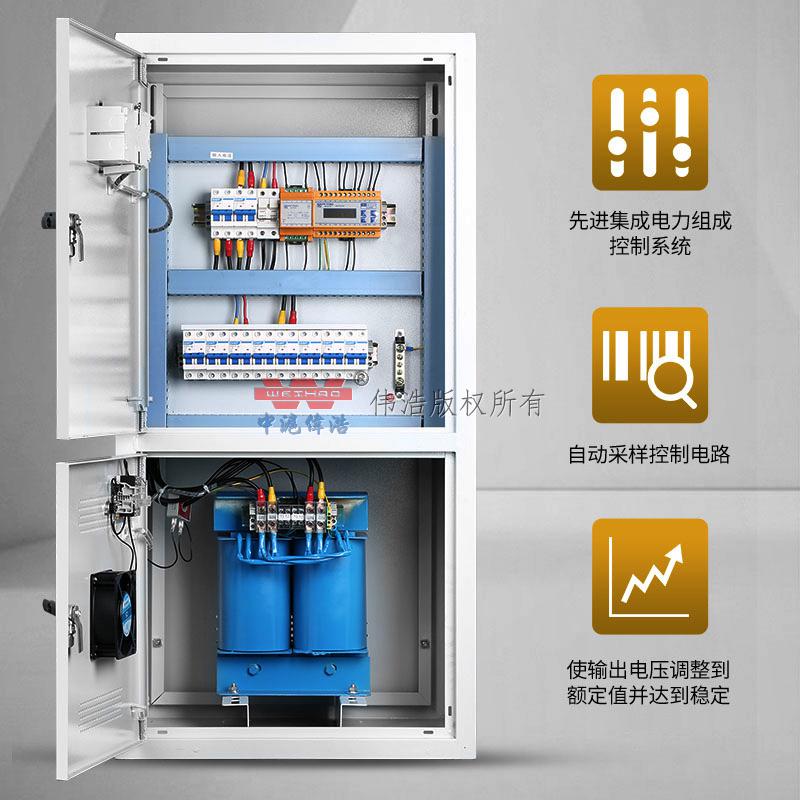

   The insulation monitor is a high-performance insulation monitoring device. The unique 24V DC power supply mode makes the entire monitoring circuit free from dangerous voltages, and minimizes the threat to the patient caused by the failure of the measuring circuit. This innovation makes the system Safety performance has been further improved. It is specially used in medical IT systems to monitor the insulation state of the IT system to the ground, grid voltage, isolation transformer temperature rise and load current; when the system fails, the device can send an alarm signal in time, and can be linked with related equipment to carry out Interlock protection, the first time to remind the staff to deal with the fault according to the actual situation.

 Function introduction of medical insulation monitor

   The insulation monitor is used to continuously monitor the resistance, current, voltage, load and transformer temperature between the live conductor on the secondary side of the isolation transformer and the ground.

Product Features of Medical Insulation Monitor

   1. Special equipment for power monitoring of medical IT system, with multiple functions

   2. The response value of insulation monitoring is adjustable

   3. The response value of transformer load monitoring is adjustable

   4. AMP measurement method for precise monitoring of IT systems

   5. RS485 interface, twisted pair link

   6. External alarm equipment, reserve a variety of alarm output ports

   The 7.24V DC power supply mode keeps the monitoring circuit away from dangerous voltages, and minimizes the threat to the patient that may be caused by the failure of the measurement circuit

   8. Powerful and highly intelligent control output interface One independently controlled temperature control interface, one programmable alarm output interface and one programmable reserved spare output interface

   9. Faster alarm response, higher measurement accuracy, lower test current

   10. Self-checking function of alarm mode: avoid the possibility that the monitoring device cannot give sound alarm signal normally when the equipment fails next time due to the misoperation of maintenance personnel

   11. More user-friendly functions and operation LCD interface

   12. The product has real-time monitoring and fault alarm functions for back-to-back monitoring IT system to ground insulation resistance, power supply voltage, transformer load current, transformer winding temperature

   13. Relay alarm output, LED alarm indicator, various fault alarm indication functions

   14. Using advanced field bus communication technology, it can communicate with HDB-7100/B01 external alarm display and tester, and host computer management software, and can monitor the annoying operation status of IT system in real time.

   15. Alarm mode self-checking function: when the alarm is turned off, the alarm mode indicator light will be on, and an early warning signal will be issued to prevent the maintenance personnel from forgetting to turn on the corresponding alarm function after the maintenance, causing the device to fail to give an audible alarm signal normally next time.

   16. HDB-7100/G320 has the power-on time recording function, which can record the running time, fault type and fault duration, help the staff to analyze the system operation and eliminate the fault in time

   17. A variety of installation methods to meet the needs of different use sites

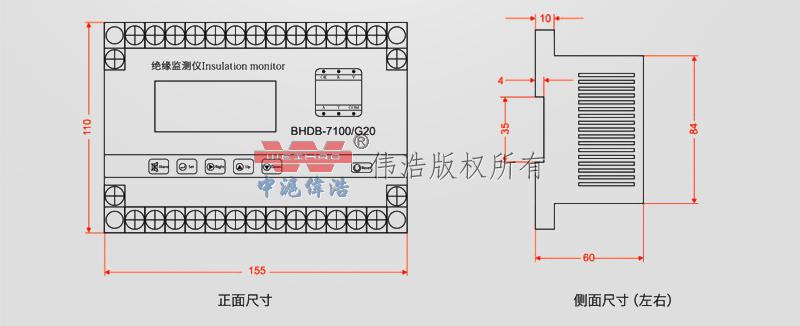

 Installation dimensions of medical insulation monitor
