product description

 Lightning strikes in nature (indirect lightning) and voltage changes caused by large switches in power supply lines have particularly large energy and may be destructive to products. Lightning surge testers are used to evaluate the performance of equipment when subjected to high energy disturbances from power line ports and other signal line ports. The products fully meet the requirements of new standards such as IEC61000-4-5 and GB/T17626.5.

Features

● 7-inch color touch screen;

 ● Support multiple languages, convenient for different users;

 ● Built-in environment automatic detection program, automatically detects the test environment and reminds users;

 ● Programmable operation, realize one key to complete the setting function;

 ● Built-in international standard grade parameters, easy to operate;

● Inrush voltage, inrush current monitoring;

● EUT intelligent detection;

● Built-in voltage and current probe;

 ● Self-calibration function, self-checking function;

 ● RS232/USB interface, PC control operation and print test report.

Technical indicators

Item model number: SUR S6

 Surge waveform: voltage wave 1.2/50 μs; current wave 8/20 μs

Open circuit voltage: 0.2~6kV

Short circuit current: 0.1~3kA

 Surge polarity: positive, negative, first positive then negative, first negative then positive

Output impedance: 2 Ω (common mode 12 Ω)

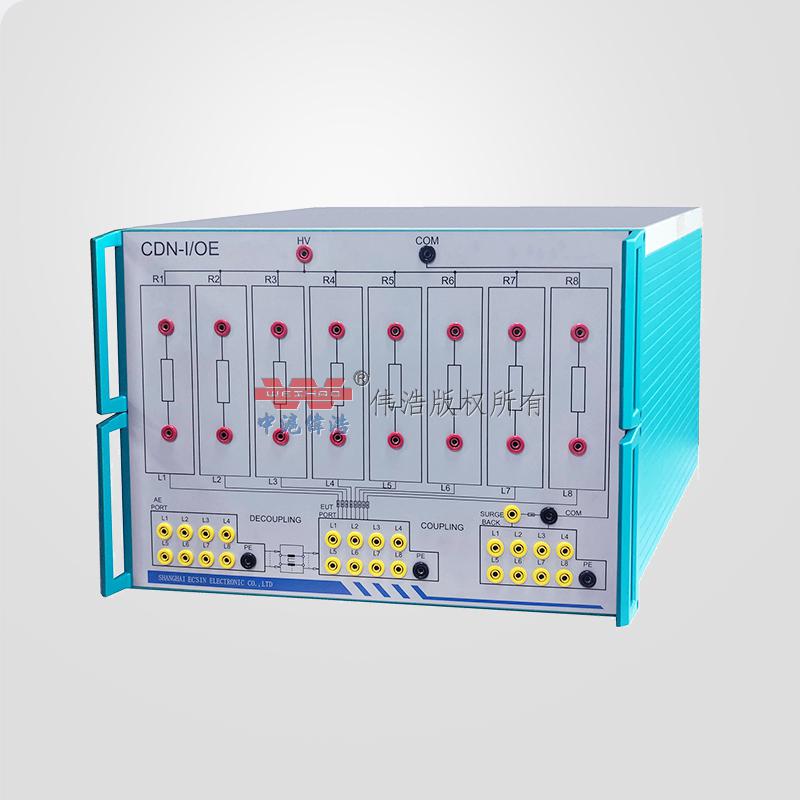

 Coupling/decoupling network: built-in, single-phase three-wire, 16A (can be customized according to customer requirements)

Times: 1～9999 times

Interval time: 10～9999S

Working power: AC220V 50/60Hz

Ambient temperature: 15 ℃～35 ℃
