10KV arrester
- Category:High voltage lightning arrester
- product description HY5WZ-10KV arrester is an electrical product used to protect various electrical equipment in the power system from overvoltage damage, and has good protection performance. Because the non-linear volt-ampere characteristics of th
- Hotline:
product description
HY5WZ-10KV arrester is an electrical product used to protect various electrical equipment in the power system from overvoltage damage, and has good protection performance. Because the non-linear volt-ampere characteristics of the zinc oxide valve plate are very good, only a few hundred microamps of current can pass under the normal operating voltage, which is convenient to design a gap-free structure, so that it has good protection performance, light weight and small size. feature. When the overvoltage invades, the current flowing through the valve plate increases rapidly, at the same time, the amplitude of the overvoltage is limited, and the energy of the overvoltage is released. After that, the zinc oxide valve plate returns to the high resistance state, so that the power system can work normally.

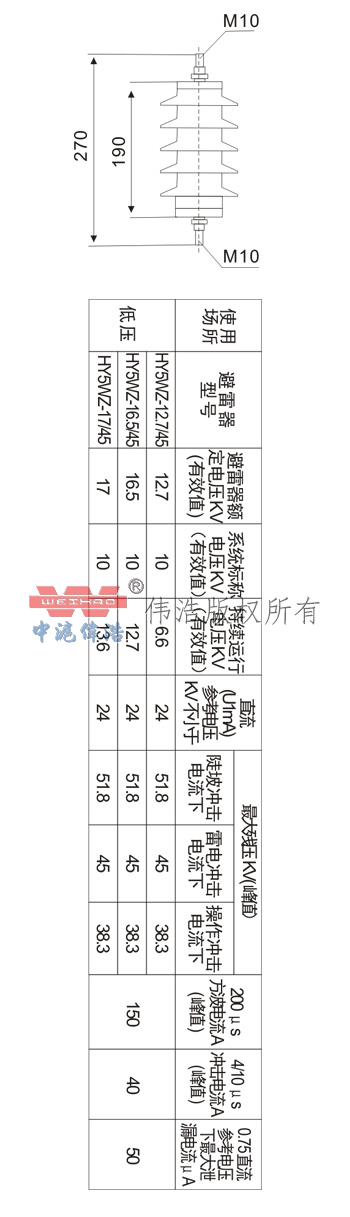

technical parameter
