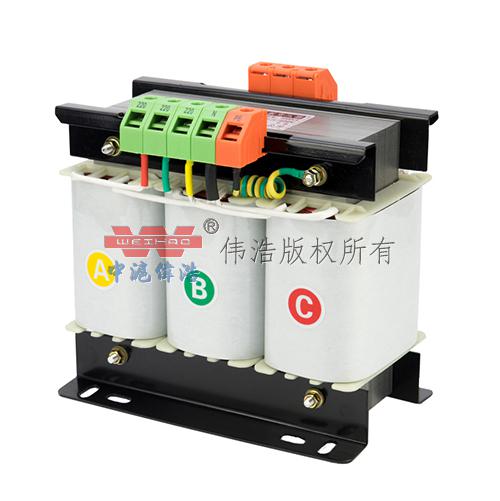

WSBK three-phase open dry-type isolation transformer
- Category：WSBK Three-phase open type isolation transformer
- product description Our company has used high-quality materials and advanced process technology for many years to produce SG series three-phase dry-type transformers between 160V and 600KVA, which are the latest research and development transforme
- Hotline：
product description
Our company has used high-quality materials and advanced process technology for many years to produce SG series three-phase dry-type transformers between 160V and 600KVA, which are the latest research and development transformers for CNC systems by our company with reference to similar products from Siemens, especially those between 160VA-16KVA. Three-phase dry-type transformers, whose appearance and installation dimensions have been standardized, are common to Siemens 4AP series, and the products conform to VDE0550, IEC439, JB5555, GB226 and other international and national standards.
SG series three-phase dry-type transformers are widely used in various three-phase power supply occasions of 50~60Hz and input and output voltages not exceeding 3300V. Generally ±5%), the distribution of winding capacity, the configuration of secondary single-phase windings, the use of rectifier circuits, whether it is required to have a casing, etc., can be carefully designed and manufactured according to user requirements.
ZSG series three-phase dry-type rectifier transformers are used for rectification equipment, charging, voltage regulation and DC power supply after rectification.
Models and what they mean
SG three-phase dry-type isolation transformer SBK three-phase dry-type transformer related parameters are as follows
? Rated capacity: 1kVA~1600kVA
? Rated voltage: 1140V, 660V, 480V, 460V, 415V, 380V, 220V, 208V, 200V, 110V, etc.
? Rated frequency: 50Hz, 60Hz ? Connection group: Y, yn0, Y, d11, D, yn11, etc.
? Protection class: IP00, IP20, IP62
?Insulation class: B class, F class, H class
SG three-phase dry-type isolation transformer SBK three-phase dry-type transformer structural characteristics
The iron core of the SG series three-phase dry-type transformer is made of high-quality cold-rolled silicon steel sheets. According to the different insulation grades, the whole is impregnated with insulating paints of different insulation grades, which can effectively reduce the noise of the transformer and reduce the influence of salt spray and mildew on the transformer. . According to the different protection levels, the transformer box is made of high-quality steel plate. The structure not only fully considers the air circulation, but also effectively plays a protective role. The transformer wiring cable is also very convenient to connect, and the design is full of humanization. Voltage and ammeter, power indicator, molded case circuit breaker, etc. can be installed according to user requirements.
SG three-phase dry-type isolation transformer SBK three-phase dry-type transformer ordering instructions
?Product number
?Rated Capacity
? Rated voltage
? Link Groups
?Way of working
? Insulation class
? Protection class
?Other special requirements will be specified in the technical agreement.
Shape and installation dimensions
See the table below and Figure 1, Figure 2, and Figure 3 for the outline and installation dimensions of SG, ZSG, and SBK.
| model |
Capacity (KVA) |
Output voltage (V) |
join group number |
Dimensions (mm) |
Installation size | ||||||||||
| enter | output | account opening | protective | account opening | protective | K×J | |||||||||
| Bmax | Dmax | Emax | Bmax | Dmax | Dmax | A±5 | C±5 | A±5 | C±5 | ||||||
| SG, ZSG, SBK-0.15 | 0.15 |
660 400 380 220 |
380 220 110 36 |
Y/yno(Y/yo) Y/d(Y/) D/Y(△/Y) Y/d(△/△) |
200 | 105 | 140 | 260 | 180 | 160 | 125 | 77 | 8×16 | ||
| SG, ZSG, SBK-0.3 | 0.3 | 180 | 110 | 180 | 260 | 180 | 160 | 75 | 70 | ||||||
| SG, ZSG, SBK-0.5 | 0.5 | 180 | 115 | 180 | 260 | 200 | 120 | 75 | 75 | ||||||
| SG, ZSG, SBK-0.75 | 0.75 | 230 | 130 | 200 | 260 | 250 | 260 | 110 | 85 | ||||||
| SG, ZSG, SBK-1 | 1 | 230 | 140 | 200 | 315 | 200 | 260 | 110 | 90 | ||||||
| SG, ZSG, SBK-1.5 | 1.5 | 230 | 155 | 200 | 355 | 290 | 280 | 110 | 105 | 10×12 | |||||
| SG, ZSG, SBK-2 | 2 | 270 | 165 | 250 | 180 | 130 | |||||||||
| SG, ZSG, SBK-2.5 | 2.5 | 270 | 175 | 250 | 370 | 290 | 300 | 180 | 140 | ||||||
| SG, ZSG, SBK-3 | 3 | 270 | 185 | 250 | 180 | 150 | |||||||||
| SG, ZSG, SBK-4 | 4 | 300 | 180 | 285 | 510 | 400 | 550 | 200 | 140 | 420 | 220 | ||||
| SG, ZSG, SBK-5 | 5 | 300 | 200 | 285 | 200 | 155 | |||||||||
| SG, ZSG, SBK-10 | 10 | 370 | 210 | 240 | 560 | 430 | 600 | 265 | 160 | 470 | 230 | Φ12 | |||
| SG, ZSG, SBK-15 | 15 | 420 | 245 | 390 | 600 | 440 | 620 | 310 | 180 | 580 | 240 | ||||
| SG, ZSG, SBK-20 | 20 | 540 | 320 | 450 | 650 | 440 | 650 | 340 | 185 | 770 | 300 | ||||
| SG, ZSG, SBK-30 | 30 | 540 | 380 | 480 | 870 | 500 | 780 | 340 | 210 | ||||||
| SG, ZSG, SBK-40 | 40 | 750 | 350 | 520 | 960 | 550 | 810 | 420 | 170 | 870 | 350 | ||||
| SG, ZSG, SBK-50 | 50 | 180 | |||||||||||||
| SG, ZSG, SBK-60 | 60 | 800 | 450 | 650 | 1000 | 810 | 810 | 420 | 195 | 900 | 350 | ||||
| SG, ZSG, SBK-80 | 80 | 205 | |||||||||||||
| SG, ZSG, SBK-100 | 100 | 860 | 450 | 650 | 1050 | 810 | 810 | 420 | 220 | 960 | 350 | ||||
| SG, ZSG, SBK-125 | 125 | 860 | 500 | 700 | |||||||||||
| SG, ZSG, SBK-160 | 160 | 950 | 600 | 800 | |||||||||||
| SG, ZSG, SBK-200 | 200 | 1000 | 680 | 850 | |||||||||||
| SG, ZSG, SBK-250 | 250 | 1050 | 700 | 850 | |||||||||||
★The size is not marked in the space, it is specified according to the user's requirements, the listed size is for reference: the product with the output current greater than 300A is a special positioning product, and the product size will be changed accordingly.
★The rated input and output voltage listed in the table can be combined arbitrarily as needed.
★The voltage and size listed in the table can be determined by negotiation according to user requirements.
Conditions of Use
1. Applicable altitude: ≤5000m
2. Ambient temperature: -15℃～+45℃
3. Relative humidity: ≤90%
4. The installation site should be free of gas, steam, chemical deposits, dirt, conductive dust and other explosive, flammable and corrosive substances that seriously affect the insulation strength of the transformer.
5. Those that do not meet the above conditions of use should be negotiated with us.
