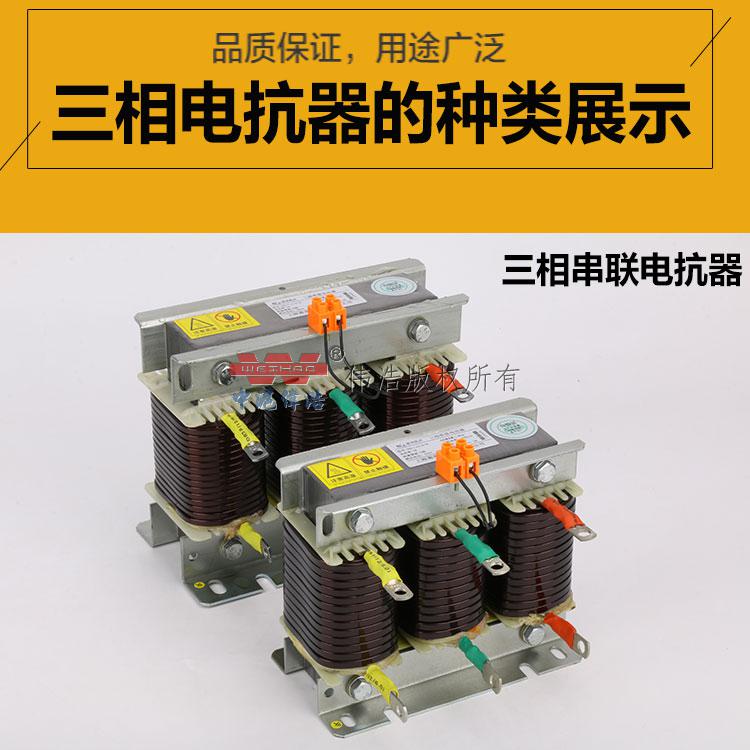

HKSG, HKDG three single-phase incoming line reactor
- Category:Inverter input reactor
- product description ★The power supply has obvious interference to other equipment (interference, overvoltage) ★ Voltage imbalance between phases of the power supply > 2.0% of the rated voltage ★ Line with extremely low impedance (power t
- Hotline:
product description
★The power supply has obvious interference to other equipment (interference, overvoltage)
★ Voltage imbalance between phases of the power supply > 2.0% of the rated voltage
★ Line with extremely low impedance (power transformer is more than 10 times the rated value of the inverter)
★A large number of inverters installed on a line to reduce line current
★Use cosφ (power factor) correction capacitor or power factor correction unit
technical parameter
★Rated working voltage: 380V/50Hz or 660V/50Hz
★Rated working current: 5A to 1600A@40℃
★Electrical strength: iron core-winding 3500VAC/50Hz/10mA/10s without arcing breakdown
★Insulation resistance: 1000VDC insulation resistance ≥100MV
★Reactor noise: less than 65dB
★Insulation class: above class F
★Product implementation standard: IEC289:1987 reactor GB10229-88 reactor (eqv IEC289:1987)
JB9644-1999 Reactor for Semiconductor Electric Transmission
Input AC reactor 2%
Specifications |
Adapted power (KW) |
Rated current | pressure drop |
Weight (Kg) |
Dimensions (±0.5mm) | |||||
D | D1 | W | W1 | H | A*B | |||||
HKSG-0005-3.8mH | 1.5 | 5A | 2% | 3.2 | 110 | 91 | 120 | 65 | 135 | 6*11 |
HKSG-0007-2.5mH | 2.2 | 7A | 2% | 3.4 | 110 | 91 | 120 | 65 | 135 | 6*11 |
HKSG-0010-1.5mH | 3.7 | 10A | 2% | 6 | 155 | 95 | 110 | 61 | 155 | 6*15 |
HKSG-0015-1.0mH | 5.5 | 15A | 2% | 5.5 | 155 | 95 | 130 | 80 | 155 | 6*15 |
HKSG-0020-0.75mH | 7.5 | 20A | 2% | 5.5 | 155 | 95 | 135 | 80 | 155 | 6*15ZS |
HKSG-0030-0.60mH | 11 | 30A | 2% | 7.2 | 190 | 120 | 115 | 85 | 150 | 8.5*20 |
HKSG-0040-0.42mH | 15 | 40A | 2% | 9 | 195 | 120 | 110 | 82 | 165 | 8.5*20 |
HKSG-0050-0.35mH | 18.5 | 50A | 2% | 11 | 195 | 120 | 130 | 102 | 165 | 8.5*20 |
HKSG-0060-0.28mH | twenty two | 60A | 2% | 11.8 | 195 | 120 | 135 | 107 | 165 | 8.5*20 |
HKSG-0080-0.19mH | 30 | 80A | 2% | 14.5 | 195 | 120 | 135 | 107 | 165 | 8.5*20 |
HKSG-0090-0.18mH | 37 | 90A | 2% | 14.5 | 195 | 120 | 135 | 107 | 165 | 8.5*20 |
HKSG-0120-0.13mH | 45 | 120A | 2% | 20 | 250 | 182 | 135 | 96 | 230 | 11*18 |
HKSG-0150-0.11mH | 55 | 150A | 2% | 28 | 295 | 214 | 150 | 110 | 240 | 11*18 |
HKSG-0200-0.08mH | 75 | 200A | 2% | 31 | 295 | 214 | 160 | 120 | 240 | 11*18 |
HKSG-0250-0.064mH | 110 | 250A | 2% | 35 | 295 | 214 | 160 | 120 | 240 | 11*18 |
HKSG-0290-0.055mH | 132 | 290A | 2% | 38 | 325 | 243 | 165 | 122 | 270 | 12*20 |
HKSG-0330-0.048mH | 160 | 330A | 2% | 38 | 325 | 243 | 165 | 122 | 270 | 12*20 |
HKSG-0390-0.040mH | 185 | 400A | 2% | 45 | 325 | 243 | 180 | 137 | 270 | 12*20 |
HKSG-0490-0.032mH | 220 | 490A | 2% | 60 | 385 | 260 | 200 | 175 | 350 | 12*20 |
HKSG-0600-0.025mH | 280 | 600A | 2% | 70 | 395 | 275 | 200 | 175 | 350 | 12*20 |
HKSG-0660-0.024mH | 300 | 660A | 2% | 70 | 395 | 275 | 200 | 175 | 350 | 12*20 |
HKSG-0800-0.020mH | 380 | 800A | 2% | 113 | 430 | 295 | 215 | 190 | 400 | 12*20 |
HKSG-1000-0.016mH | 450 | 1000A | 2% | 115 | 430 | 295 | 215 | 190 | 450 | 12*20 |
HKSG-1200-0.013mH | 550 | 1200A | 2% | 150 | 490 | 345 | 225 | 195 | 575 | 14*25 |
Input AC reactor 4%
Specifications |
Adapted power (KW) |
Rated current | pressure drop |
Weight (Kg) |
Dimensions (±0.5mm) | |||||
D | D1 | W | W1 | H | A*B | |||||
HKSG-0005-5.6mH | 1.5 | 5A | 4% | 2.8 | 148 | 95 | 85 | 55 | 168 | 6*15 |
HKSG-0007-3.5mH | 2.2 | 7A | 4% | 2.9 | 148 | 95 | 85 | 55 | 168 | 6*15 |
HKSG-0010-2.8mH | 3.7 | 10A | 4% | 4 | 148 | 95 | 105 | 80 | 168 | 6*15 |
HKSG-0015-1.9mH | 5.5 | 15A | 4% | 9.5 | 188 | 120 | 125 | 90 | 156 | 8.5*20 |
HKSG-0020-1.4mH | 7.5 | 20A | 4% | 9.6 | 188 | 120 | 125 | 90 | 156 | 8.5*20 |
HKSG-0030-0.93mH | 11 | 30A | 4% | 11.5 | 188 | 120 | 130 | 95 | 156 | 8.5*20 |
HKSG-0040-0.7mH | 15 | 40A | 4% | 12 | 188 | 120 | 130 | 95 | 156 | 8.5*20 |
HKSG-0050-0.56mH | 18.5 | 50A | 4% | 13 | 188 | 120 | 130 | 100 | 176 | 8.5*20 |
HKSG-0060-0.47mH | twenty two | 60A | 4% | 13 | 188 | 120 | 130 | 100 | 176 | 8.5*20 |
HKSG-0080-0.35mH | 30 | 80A | 4% | 19 | 240 | 182 | 132 | 115 | 230 | 10*18 |
HKSG-0090-0.31mH | 37 | 90A | 4% | twenty two | 240 | 182 | 132 | 115 | 230 | 10*18 |
HKSG-0120-0.23mH | 45 | 120A | 4% | 25 | 240 | 182 | 132 | 115 | 230 | 10*18 |
HKSG-0150-0.19mH | 55 | 150A | 4% | 27 | 288 | 214 | 140 | 110 | 274 | 11*18 |
HKSG-0200-0.14mH | 75 | 200A | 4% | 29 | 288 | 214 | 140 | 115 | 274 | 11*18 |
HKSG-0250-0.11mH | 110 | 250A | 4% | 32 | 288 | 214 | 145 | 120 | 274 | 11*18 |
HKSG-0290-0.096mH | 132 | 290A | 4% | 44 | 320 | 243 | 155 | 127 | 305 | 12*20 |
HKSG-0330-0.085mH | 160 | 330A | 4% | 44 | 320 | 243 | 155 | 127 | 305 | 12*20 |
HKSG-0390-0.072mH | 185 | 390A | 4% | 47 | 320 | 243 | 165 | 133 | 305 | 12*20 |
HKSG-0490-0.057mH | 220 | 490A | 4% | 70 | 381 | 260 | 198 | 175 | 375 | 12*20 |
HKSG-0600-0.047mH | 280 | 600A | 4% | 77 | 381 | 260 | 198 | 175 | 375 | 12*20 |
HKSG-0660-0.042mH | 300 | 660A | 4% | 77 | 381 | 260 | 198 | 175 | 375 | 12*20 |
HKSG-0800-0.035mH | 380 | 800A | 4% | 115 | 420 | 300 | 213 | 190 | 430 | 12*20 |
HKSG-1000-0.028mH | 450 | 1000A | 4% | 127 | 420 | 300 | 213 | 190 | 430 | 12*20 |
HKSG-1200-0.022mH | 550 | 1200A | 4% | 155 | 470 | 345 | 230 | 205 | 580 | 12*22 |
