product description

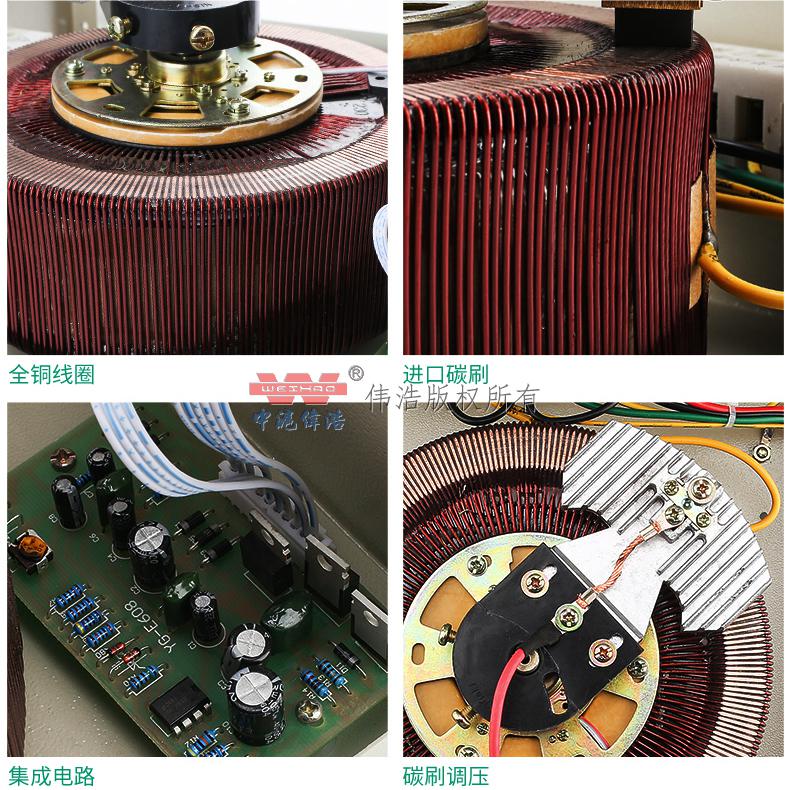

 SVC/TND series single-phase high-precision automatic AC voltage stabilizer is composed of contact auto-voltage regulator, servo motor, automatic control circuit, etc. When the grid voltage is not regulated or the load changes, the automatic sampling control circuit sends a signal Drive the servo motor and adjust the position of the carbon brush of the auto-voltage regulator, so that the output voltage is adjusted to the rated value and reaches a stable state.

 This series of voltage stabilizers is a luxury type and has the function of mains pass-through. This series of products has the advantages of many varieties, complete specifications and beautiful appearance. It has the characteristics of undistorted waveform, high efficiency, reliable performance, and long-term operation. It is equipped with protection functions such as short delay and overvoltage. According to the needs of users, long delay and undervoltage protection can be added. The product is widely used in any application. It is an ideal regulated power supply to ensure the normal operation of your electrical equipment.

Model Specifications

Selection Tips

 1. This series of products can only be used indoors, please follow the normal use conditions.
 2. The input of this series of single-phase voltage stabilizer is L1N wiring, which cannot be used normally when the system is missing zero, otherwise the voltage stabilizer will be damaged.
 3. In order to ensure the normal output voltage and current of the voltage stabilizer and reduce the power loss of the line, please select the cross-sectional area of the input and output wires reasonably. Generally, the copper core conductor is selected and calculated according to 4A/mm2. If aluminum core wire is used, it is calculated according to 2.5A/mm2.
 4. Special voltage, models and specifications can be customized.
