SBW-Z Intelligent Digital Display Compensation Power Regulator

SBW-Z Intelligent Digital Display Compensation Power Regulator SBW-Z Intelligent Digital Display Compensation Power Regulator SBW-Z Intelligent Digital Display Compensation Power Regulator

SBW-Z Intelligent Digital Display Compensation Power Regulator

  • Category:SBWDBW compensating regulator
  • Product performance SPECIFICATIONS Input voltage Input voltage Single-phase Single phases: 175V-265V three - phase four-line Three phases four-line 175V-265V (phase voltage phases voltage) 300V-456V (line voltage Linevoltage) Output voltage
  • Hotline:
Product Description

Product performance SPECIFICATIONS

Input voltage
Input voltage
Single-phase Single phases: 175V-265V
three - phase four-line Three phases four-line
175V-265V (phase voltage phases voltage)
300V-456V (line voltage Linevoltage)
Output voltage
Output voltage
Single phase Single phases: 220V;
Three phases Three phases: 380V;
Output precision
Output deviance
1-5% (Adjustable) Frequency
Frequency
50Hz/60Hz
Efficiency
Efficiency
≥95% (at power level 50kvA)
(Power>50kVA)
Response time
Response time
≤1.5S
Ambient temperature
Ambient temperature
-10℃~+40℃ Insulation Resistance
Insulation resistance
≥5MΩ
Overload
Overload
Twice the rated current, 1 min
Double rated current, one min.
Waveform distortion
Waveform distortion
No additional waveform distortion
Non-lack fidelity wareform
Protective function

working principle

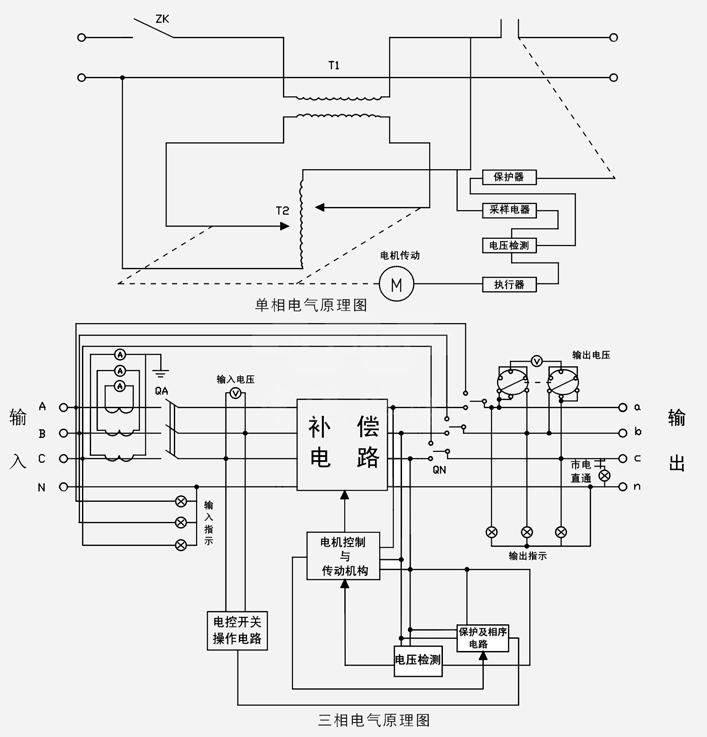

 The voltage stabilizer is composed of compensation circuit, contact voltage regulator, voltage detection circuit, return circuit, servo motor empty circuit and deceleration transmission structure, main circuit switch operation circuit, voltage and current measurement and protection circuit. The three-phase and single-phase electrical schematics are as follows

OUTLINE & PACKING

Model Specifications
Model
Output Power
Output power (kVA)
Product
sizeOutline (cm)
Net
Weight(kg)
SBW-50K 50 80x54x135 250
SBW-60K 60 80x54x135 255
SBW-100K 100 80x60x150 357
SBW-150K 150 100x70x170 482
SBW-180K 180 100x70x170 515
SBW-200K 200 100x70x170 562
SBW-225K 225 110 × 80 × 180 670
SBW-250K 250 110 × 80 × 180 710
SBW-300K 300 110 × 80 × 200 755
SBW-320K 320 110 × 80 × 200 810
SBW-400K 400 100 × 80 × 200/2 cabinets 1175
SBW-500K 500 100 × 80 × 200/2 cabinets 1510
SBW-600K 600 100 × 80 × 200/2 cabinets 1790
SBW-F-800K 800 85 × 120 × 200/3 cabinets 2750
SBW-F-1000K 1000 85 × 120 × 200/3 cabinets 2780
SBW-F-1200K 1200 85 × 120 × 200/3 cabinets 4050
SBW-F-1600K 1600 135 × 130 × 220/4 cabinets 5500
SBW-F-2000K 2000 135 × 130 × 220/4 cabinets 7050

 Note: Various input voltage ranges can be customized according to customer requirements!
