Product Usage

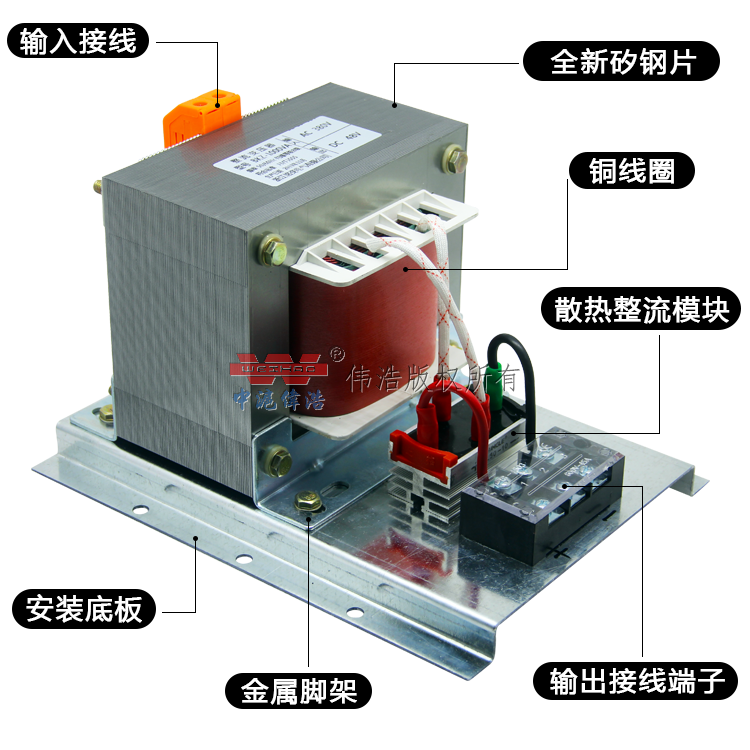

 JBKZ series rectifier transformers conform to electrical rectification standards. It is composed of cold-pressed socket machine tool control transformer, etc. After assembly, it constitutes a single-phase full-wave, rectified power supply. The AC input is provided with ±5% adjustment, so that the AC voltage can be changed into a DC power supply device, which is suitable for the use of electrical components of CNC machine tools.

normal working conditions

 ★The upper limit of ambient air temperature does not exceed +40℃;

★ 24h average ambient air temperature does not exceed 30 deg.] C +;
★ ambient air temperature limit is not lower than -5 deg.] C;
★ elevation: the installation site altitude not exceeding 2,000 m;
★ Air conditions: relative humidity of the ambient air temperature +40°C does not exceed 50%, and the relative temperature can be higher at lower temperatures. The average maximum relative humidity in the wettest month is 90%, and the average minimum temperature in this month is +25°C, and taking into account due to temperature changes Condensation on the surface of the product occurred;
★Pollution degree: pollution degree is three;
★Installation category (overvoltage category): Installation category is III;
★Power supply voltage: The allowable deviation of power supply voltage is ±5%;
★Installation conditions: Install in a place without severe vibration and shock vibration.

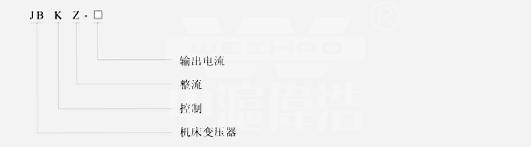

Models and what they mean

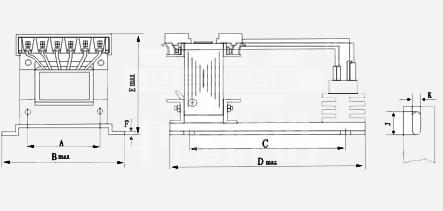

Dimensions

Installation size

The main technical parameters

Installation and maintenance

 ★The use of the rectifier transformer must meet the conditions specified in Article 2;
 ★Before installation, carefully check the parameters on the nameplate, and then install and use it
;
 ★ Avoid collision as much as possible during transportation, store in a dry and ventilated place, and do not get wet to ensure the performance and service life of the product.
