KSG mine explosion-proof dry-type explosion-proof transformer
- Category:KSG/BBK explosion-proof transformer
- Scope of application and useKSG-2.5, 4.0/0.66 type mine explosion-proof dry-type transformers (hereinafter referred to as transformers) are suitable for explosion-hazardous places with biogas and coal dust in coal mines. I
- Hotline:
Scope of application and use
KSG-2.5, 4.0/0.66 type mine explosion-proof dry-type transformers (hereinafter referred to as transformers) are suitable for explosion-hazardous places with biogas and coal dust in coal mines. In the power supply line from AC 50HZ voltage to 660V/provide 127V power supply for coal drill.
The transformer is designed according to relevant standards such as GB3836.1-83 "General Requirements for Explosion-Proof Electrical Equipment for Explosive Atmospheres" GB3836.2-83 "Explosion-proof Electrical Equipment for Explosive Atmospheres Flameproof Electrical Equipment "d"". Manufacturing and Inspection.

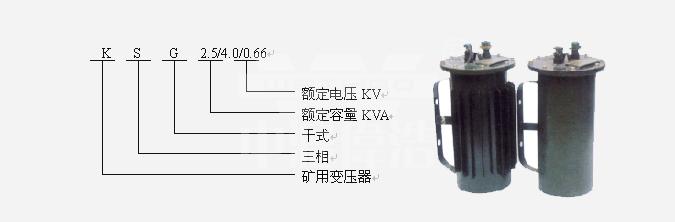

Models and what they mean
The main technical parameters
Capacity (KVA) |
Rated voltage (V) | Rated current (A) |
No-load loss (W) |
Load loss (W) |
No-load current (A%) |
Impedance voltage (V%) |
||
primary | first time | primary | first time | |||||
2.5 | 660 | 133 | 2.19 | 10.85 | 45 | 81 | 14 | 4 |
380 | 127 | 3.80 | 11.38 | |||||
4.0 | 660 | 133 | 3.50 | 17.35 | 55 | 125 | 12 | 4 |
380 | 127 | 6.06 | 18.90 | |||||
5/6 | 660 | 133 | 4.37/5.25 | 21.71/26.05 | 85 | 161 | 12 | 4 |
380 | 127 | 7.60/9.12 | 22.73/27.28 | |||||
10 | 660 | 133 | 8.74 | 43.41 | 137 | 318 | 4 | |
380 | 127 | 15.19 | 45.46 |
