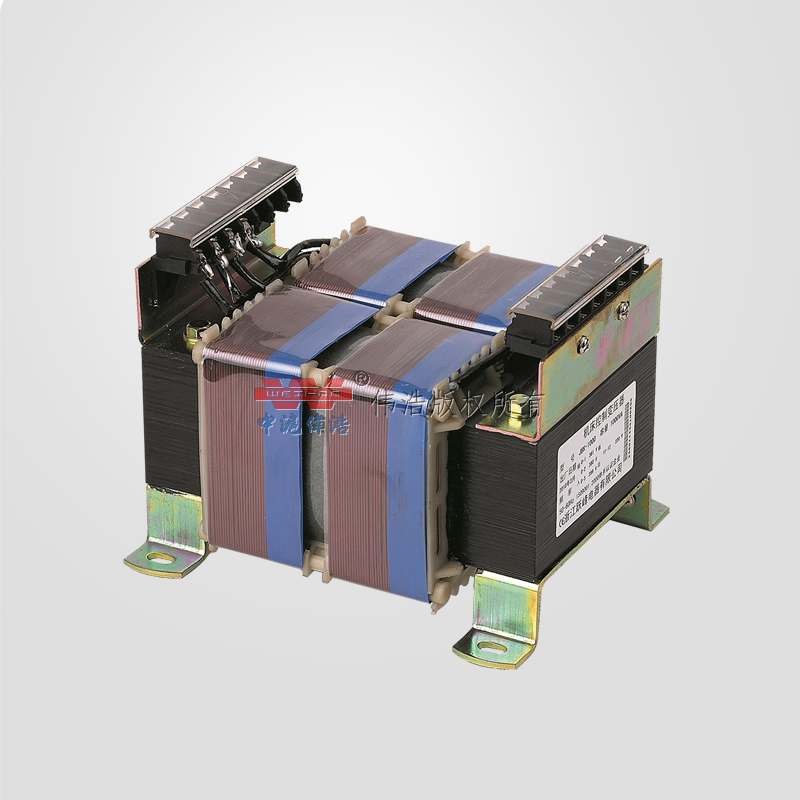

JBK3/DK3 series machine tool control transformer

JBK3/DK3 series machine tool control transformer JBK3/DK3 series machine tool control transformer

JBK3/DK3 series machine tool control transformer

  • Category:JBK series transformers
  • product descriptionJBK3 (DK3) series machine tool control transformers are new products manufactured with reference to German Siemens prototypes, and conform to VDE0550, IEC204-1, IEC439, GB5226 and other relevant internat
  • Hotline:
Product Description

product description

JBK3 (DK3) series machine tool control transformers are new products manufactured with reference to German Siemens prototypes, and conform to VDE0550, IEC204-1, IEC439, GB5226 and other relevant international and national standards.

JBK3 system machine tool control transformer is suitable for AC 50-60Hz, the output rated voltage does not exceed 220V, and the input rated voltage does not exceed 500V.

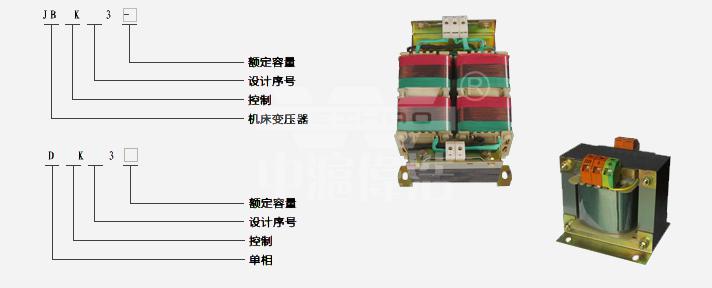

Models and what they mean

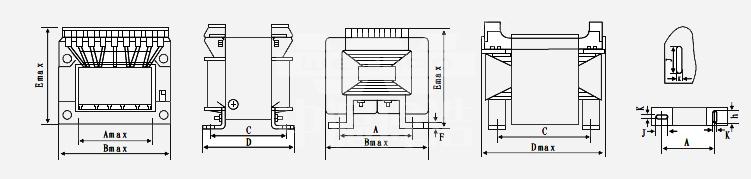

Shape and installation dimensions


model Dimensions Mounting hole distance Mounting hole
k×J
Fmax
Bmax Dmax Emax A C
JBK3—40/60VA 78 72 89 56±0.4 51±2 4.8×9 12
JBK3—100VA 85 85 94 64±0.4 66±2 4.8×9 12
JBK3—160VA 96 91 109 84±0.4 73±2 5.8×11 14
JBK3—250VA 96 105 109 84±0.4 87±2 5.8×11 14
JBK3—400VA 120 109 123 90±0.4 90±2 7×12 18
JBK3—630VA 150 112 150 122±0.5 90±2 7×12 twenty two
JBK3—1000VA 160 195 151 126±2 152±2 7×12 18
JBK3—1600VA 184 220 163 140±2 176±2 7×12 18
JBK3—2500VA 200 250 171 172±2 200±2 7×12 18

Conditions of Use

1. Applicable altitude: ≤5000m

2. Ambient temperature: -15℃~+45℃

3. Relative humidity: ≤90%

4. The installation site should be free of gas, steam, chemical deposits, dirt, conductive dust and other explosive, flammable and corrosive substances that seriously affect the insulation strength of the transformer.

5. Those that do not meet the above conditions of use should be negotiated with us. Sure.
